Product manufacturers often develop better solutions to decrease the physical size of the devices and increase performance. Advancements are being made in the area of miniature but powerful printed circuit boards. SMT PCB assembly is a new method of placing small parts on these boards. The technique has revolutionized how electronic parts are connected to the circuit boards.
What is SMT PCB Assembly?
SMT PCB Assembly is a novel approach to electronic board manufacturing. SMT signifies Surface Mount Technology. This method places small electronic parts directly on the circuit board. It is superior to the traditional method because it is faster and can manufacture smaller boards.
The whole process of making these boards with SMT is the SMT PCB Assembly. The primary steps are as follows:
- Apply a special paste to the board
- Attach the little parts to the board
- Heat the board to melt the paste
- Inspect if each element is installed correctly
The program is most important for modern electronic implementation. It is fast, precise, and can be used for multiple types of devices.
A Brief History of Surface Mount Technology
It was not long before Surface Mount Technology (SMT) was developed that the electronics industry used another method. The old approach was, to a large extent, a hole in the board. It’s slow and expensive, but the parts are also very large.
To make it small and complex in the 1980s, people used SMT. This is where the computing part was put on the board from both sides with the help of this new technology. This, in turn, allowed more parts to be installed on the board.
90% of companies were already mounting their electronic devices with SMT in the 1990s. It has a growing reputation as the mainstream approach for manufacturing electronic gadgets.
Key Benefits of SMT PCB Assembly
1. Compact Design
In contrast, the functionalities of SMT parts remain similar, yet are tiny in size. More parts are compactly arranged in a smaller board, leading to thinner and more attractive devices.
2. Automated Production
The SMT operation is mostly automated, and machines are in control. The machines are capable of placing thousands of components on a board within an hour, very accurately. This reduces errors and thus, the process becomes faster.
3. Cost-Effective Manufacturing
Initially, SMT investments seem very costly. However, in the long run, they help a lot in saving money. A major cut in staffing, faster manufacturing time, and better use of space get costs down.
4. High Reliability and Performance
SMT plays nicely electrically. Because they do not break because the wires do not represent any extra power consumption, reliability is also increased as the final product strengthens.
Components Used in SMT
Surface Mount Technology (SMT) parts are designed to be placed directly on the board. They are typically with no wires or very tiny ones. This enables the machines to easily place them in the right position. Here are some common SMT parts:
- Resistors and capacitors
- Integrated Circuits (ICs)
- Diodes and transistors
- Inductors
- LEDs
The SMT PCB Assembly Process
Let’s take a step-by-step look at how the SMT PCB assembly process works.
Step 1: Solder Paste Application
A special paste is supplied for the bar pads with the help of a stencil. The paste is both sticky and features small solder balls.
Step 2: Pick and Place

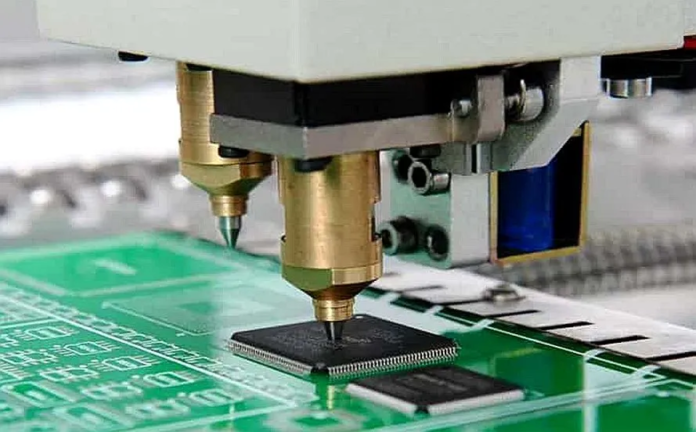

The small parts are collected by automated machinery and placed in the correct position on the board. These machines can put on the board thousands of parts in an hour.
Step 3: Reflow Soldering
The board is then baked in an oven. The heat makes the solder paste melt. Later, the cooled solder becomes a hard barrier, keeping the parts in place. (I once observed a printed circuit board being put through this process and was amazed by the rapid transformation from transparent to solid easily.)
Step 4: Inspection and Testing
The board receives inspection procedures after soldering is finished.
- Automated Optical Inspection (AOI)
- X-ray Inspection
- Functional Testing
Any defective boards are flagged for rework or repair.
Challenges in SMT PCB Assembly
While the benefits of the SMT PCB assembly method are many, it is not without its problems:
- Very Small Parts: The parts used in SMT are so tiny that it is difficult to handle and repair them by hand.
- Heat Control: Since many parts are located close to each other, these parts can heat up. Therefore, a special cooling procedure is needed.
- Tricky Repairs: The board is spoiled, and there is no possible way to remove the tiny components without breaking the adjacent parts.
- Exact Design Needs: Making a PCB for SMT-based devices follows strict rules on part sizes, clearances between parts, and wire routing. Incorrect design may lead to a waste of expensive resources.
SMT PCB Assembly in Different Industries
The SMT technology has evolved to be applicable in multiple areas because the technology can be used in many ways.
Home Electronics
SMT is the breakthrough in technology that produces all the small-sized lightweight devices such as mobile phones, laptops, tablets, and wristwatches, etc., pretty easily.
Cars
Smaller new cars are in demand today to facilitate the move to more advanced electric and smart vehicles, which require smaller, more reliable circuit boards. The SMT technique comes in as the ultimate answer to that.
Medical Tools
SMT is the technology that makes medical devices such as pacemakers, testing equipment, and health monitors precise and reliable. For example, companies are now producing pacemakers and testing equipment that are extremely reliable. Further, patients can use health monitors that are more precise and convenient, and thus are safe for them.
Communication
Routers and modems for the internet work much faster and are becoming much smaller due to the adoption of the Surface Mount Technology process.
SMT technology has transformed the process of making in each of these areas. In fact, the technology has enabled the invention of miniaturized yet superior equipment that has a wide range of everyday applications.
Quality Standards in SMT PCB Assembly
To ensure the reliability and performance of assembled PCBs, various quality standards are followed:
- IPC-A-610: Acceptability of Electronic Assemblies
- ISO 9001: Quality Management Systems
- RoHS Compliance: Restriction of hazardous substances in electronics manufacturing
These standards are critical for companies looking to ensure consistency, safety, and product performance.
How to Choose an SMT PCB Assembly Provider
If you’re outsourcing your PCB assembly, consider the following:
- Experience in handling complex SMT boards
- Certifications like ISO and IPC compliance
- Turnaround Time and Production Capacity
- Quality Assurance processes
- Prototyping Services for testing your design before mass production
Choosing the right partner ensures your products are reliable, efficient, and ready for market.
Conclusion
Modern electronics production uses SMT PCB assembly combined with China PCB assembly to create small yet powerful circuit boards at affordable prices. This technological breakthrough changed how markets function in consumer electronics, automotive production, and healthcare system applications.
The SMT process delivers significant manufacturing advantages that help companies develop smartwatches and vehicle smart sensors successfully. Every designer and manufacturer in electronics needs to stay updated about new manufacturing methods and measurably decreasing components, since these developments become fundamental to their expertise.
